Digital microscope
Microscopic inspecting solution in vibrating environments,1.3MP, 8 LED, 0.4X-2.5X optical magnification combining with 125X digital magnification, big handwheel focusing,handheld USB microscope

Future Optics’ handheld zoom USB digital microscope is a patent design outdoor usage microscope against vibrating environment, It‘s an organic combination of a low magnification optical system with a high magnification digital system. This innovative design allows the microscope to be used directly on the production site, rather than in the laboratory, acting as powerful digital tool to capture and to display and to measure the detailed message of micro world.

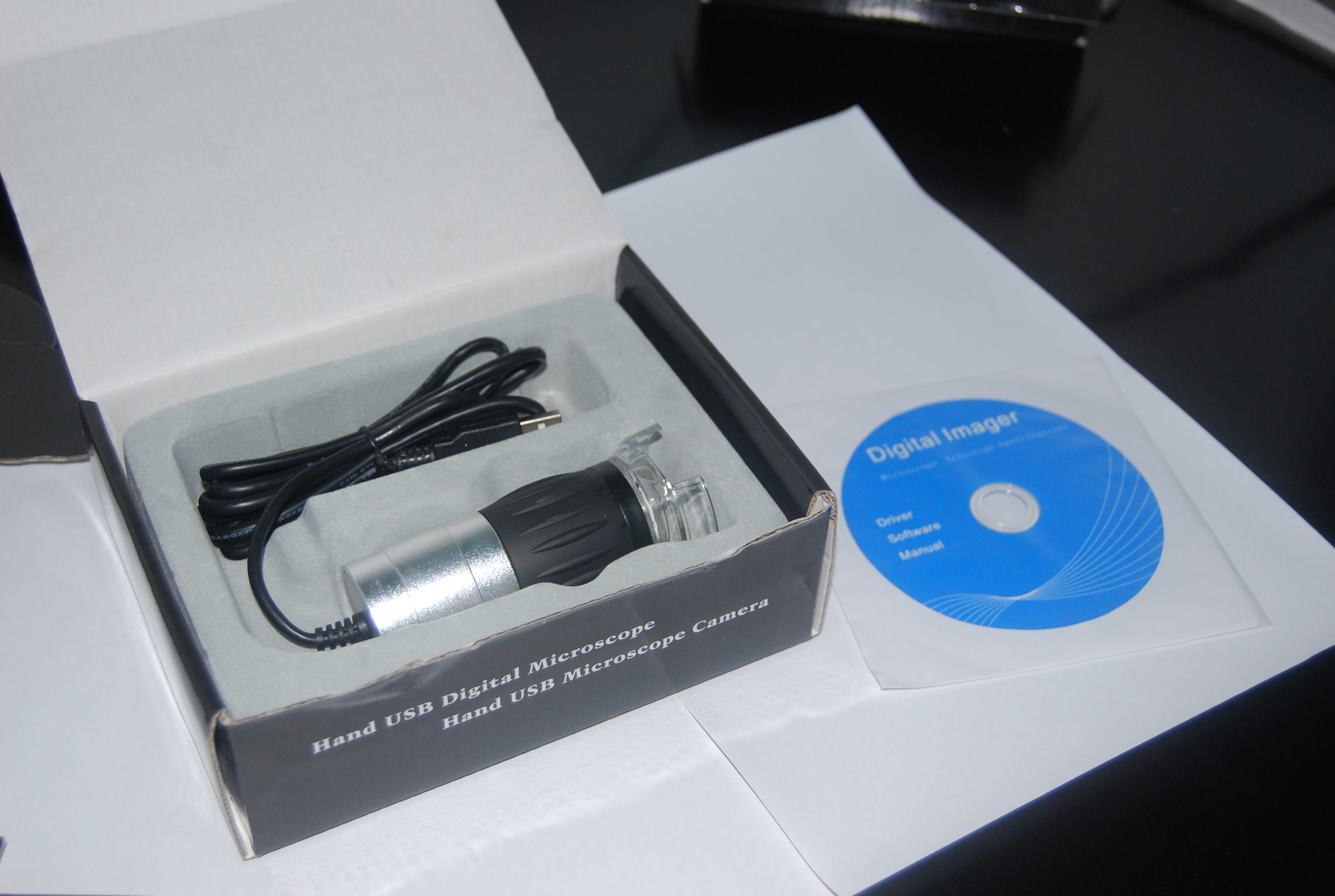

MDA1300 is a patented design 1.3MP portable USB digital microscope. Equipped with high performance optical system, imaging sensor, mechanical structure and powerful software, it's the perfect combination of high-performance digital imaging module with innovating optics & mechanism design and powerful software, it provides large breakthrough in digital microscope design, and it has widely applications in industry, acting as a powerful magnification tool  to check and to record detailed message out of laboratory.


Features:

●  Digital imaging module: 1.3MP high performance CMOS imaging module.

●  Imaging software: Future Win Joe image & movie capturing and processing program.

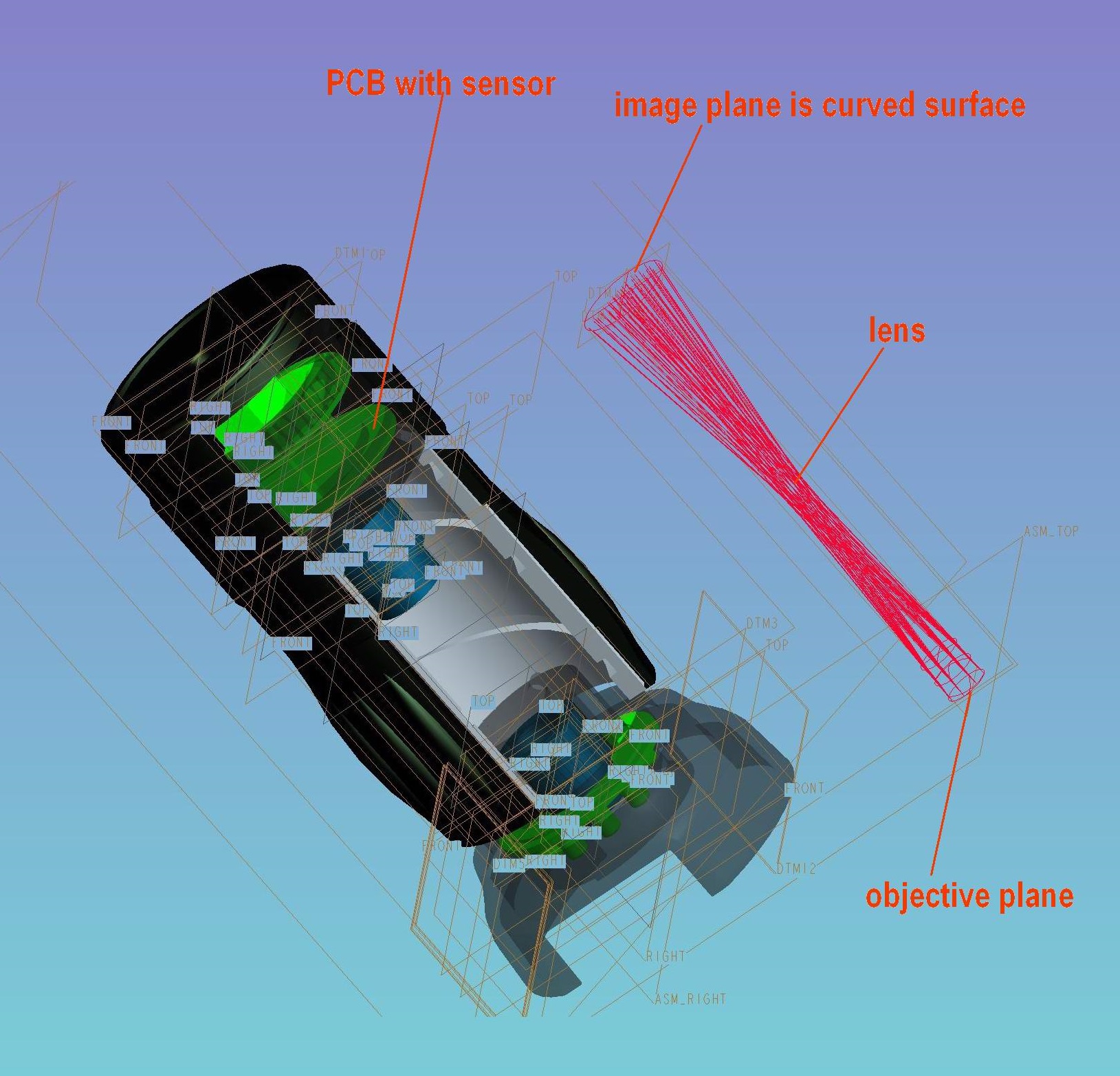

●  Optical conjugation imaging module: One set of lenses offers 2 optical magnifications: 2.5X and 0.4X.

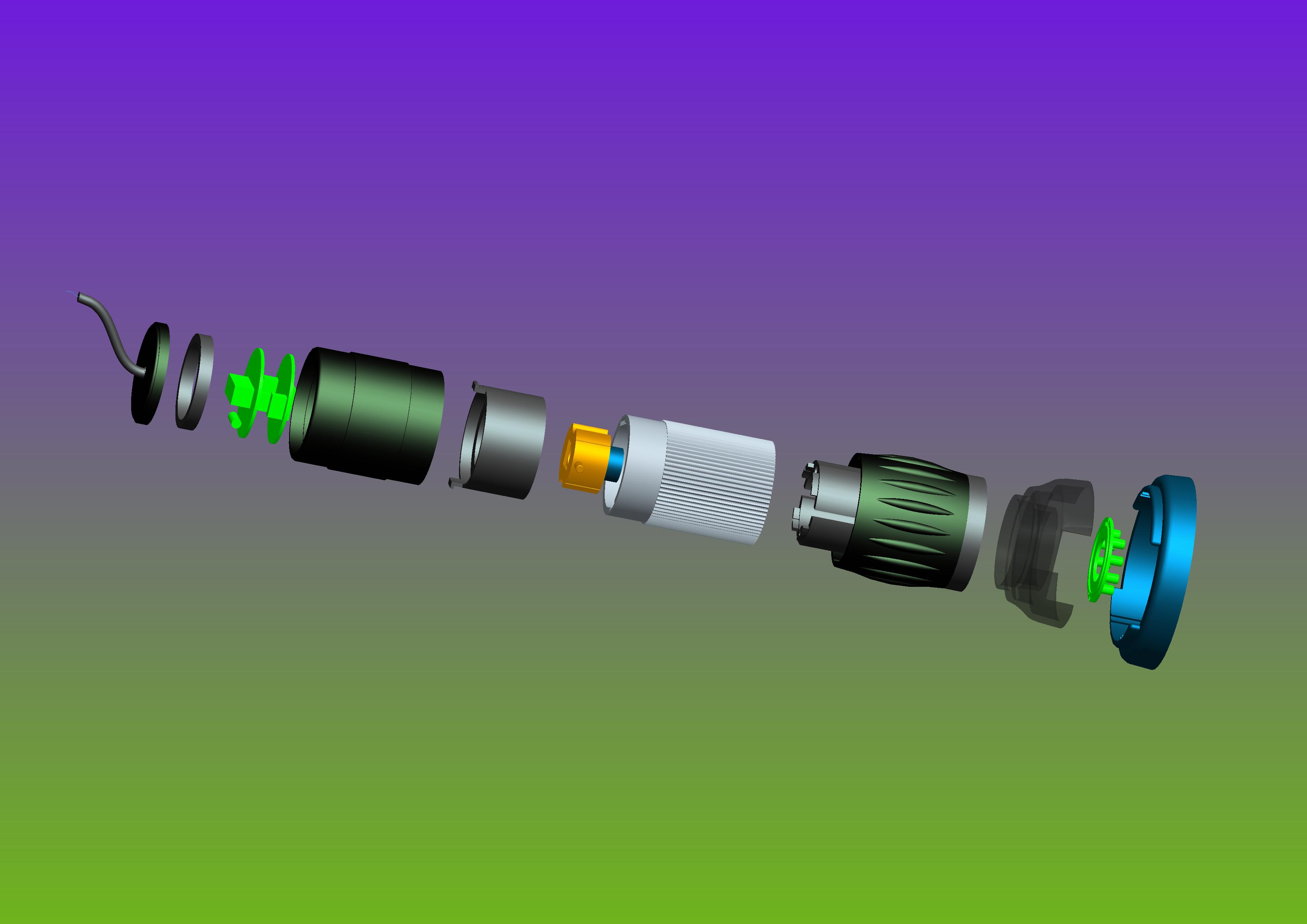

●  Zoom and focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus.

●  Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.

●  Easy installation, convenient operation.


Functions:

●  To adjust the gain, resolution, WB, contrast, exposure time, RGB color and Gamma setting.

●  To edit pictures and to manage files of pictures and movies.

●  To capture images for living show, for shoot and for video recording.


Specifications:

Capture ModePicture and Video
Sensor Parameter1/4" 1.3MP Color CMOS
Max. Resolution1280*1024
Pixel Size2.8µm*2.8µm
Sensitivity1.0V / lux-sec
Dynamic Range71.0 dB
S/N Ratio44.0 dB
Working Distance5.0MM ---∞
Magnification1---40X; 240X
Spectral Range400-650nm (with IR-filter)
Frame Rate17fps@1280*1024
Preview Model1280*1024; 640*480; 320*240
ExposureERS or Manual
Power Consumption170mw
White BalanceERS or Manual
Device Weight0.12kg

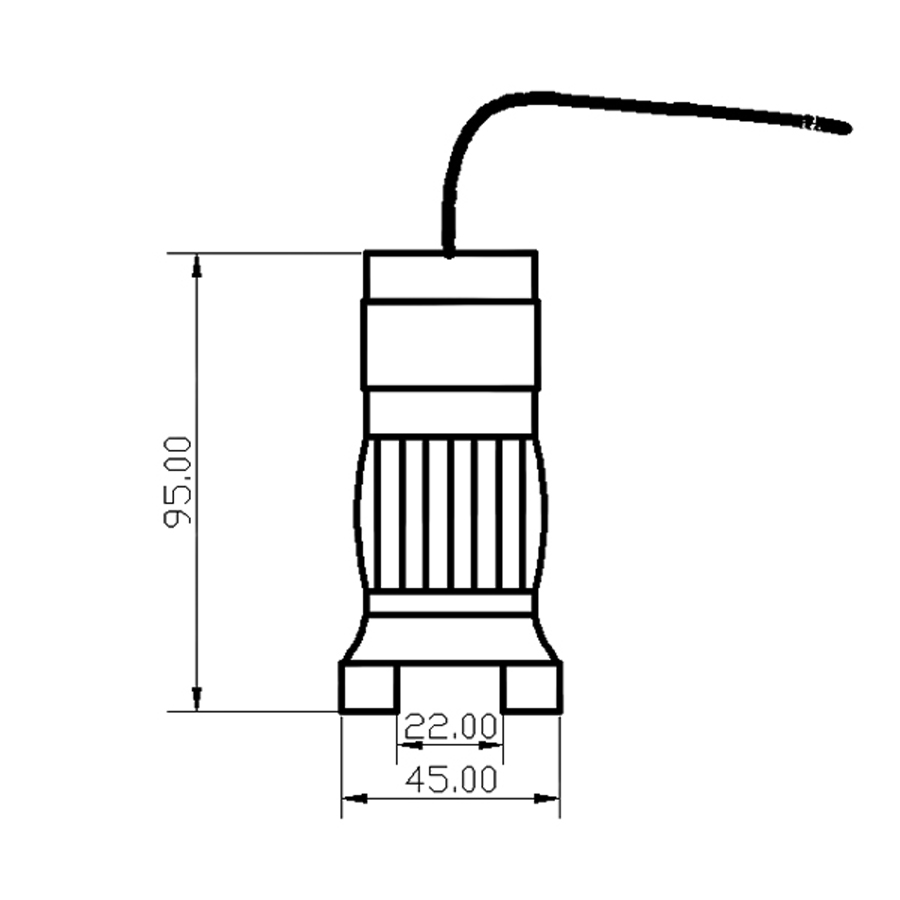

Device SizeΦ45mm*95mm
