LRF6000 laser rangefinder is specially designed for measurement of outdoor sport and engineering construction with the measurement range of 5 to 600yd, it consists of target finding lens, laser transmission lens, laser receiving lens, LD circuit, PD circuit, control circuit and display circuit units.

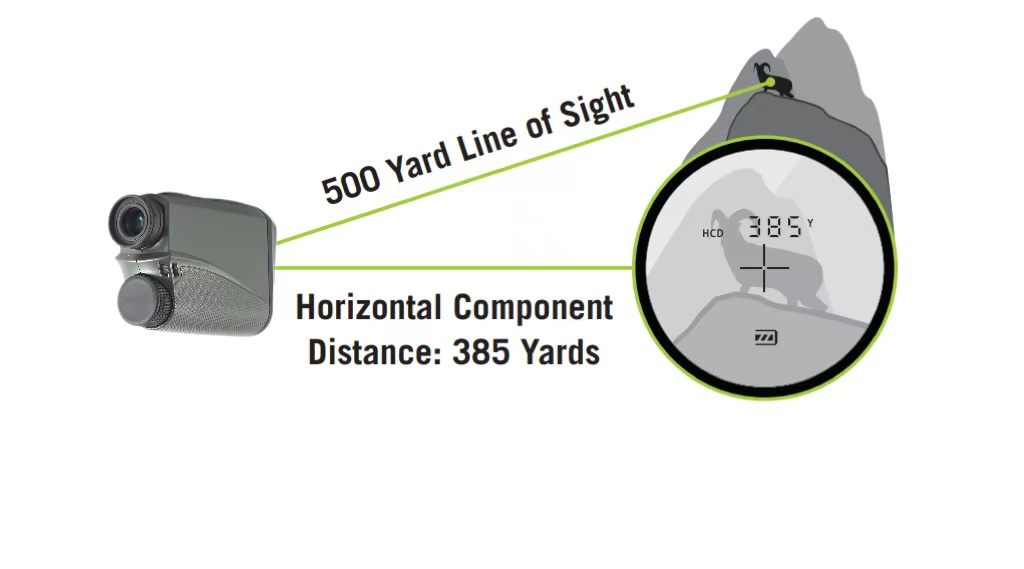

Future Optics' FG LRF600 handheld laser rangefinder is an extremely effective angle-compensated laser rangefinder for outdoor sports and field measurement, like hunting, golfing and topographic surveying. Using the primary HCD (Horizontal Component Distance) Mode, it provides key angle compensated range information required by the vast majority of shooters and measurers in a simple, quick to read display. Secondly, this rangefinder provides a LOS (Line of Sight) Mode. The third, user can utilize the Scan Feature to range moving targets.
Future Optics' laser rangefinders work by emitting a brief pulse of light aimed at a target object. Distance is determined by the amount of time taken for the light from transmitter to emit and return to the receiver.
Future Optics' handheld laser rangefinder is sort of an optical transceiver module used in the field space. It consists of target finding lens, laser transmission lens, laser receiving lens, LD circuit, PD circuit, control circuit and display circuit units.
Features:
● HD optical system
● Ultra-hard lens coatings
● High sensitive receiving
● Waterproof design
● Shockproof design
●15/FCC/Pursuant to part 15 of the FCC Rules.
Application:
●Topographic surveying
●Hunting
●Golfing
Technical specifications:
Parameter | FG LRF600 |
Magnification | 6X |
Max Reflective Range | Up to 600 yds |
Objective Diameter | 20mm |
Receiving Diameter | 20mm |
Minimum Range | 5 yds. (4.5m) |
Maximum Angle Reading | ± 60° |
Accuracy | ± 1 yd @ 100 yds |
Field of View | 6.5° |
Range Acquisition Time | <0.8 sec (<100yds) |
Display Type | LCD |
Eye Relief | 15.2mm |
Battery Type | CR2 |
Battery Life | ~5000 Range Cycles |
Dimensions | 96x74x36.5 |
Weight | 132g |
Operation Temperature | -10°C to + 50℃ |
Storage Temperature | -20°C to + 65℃ |
